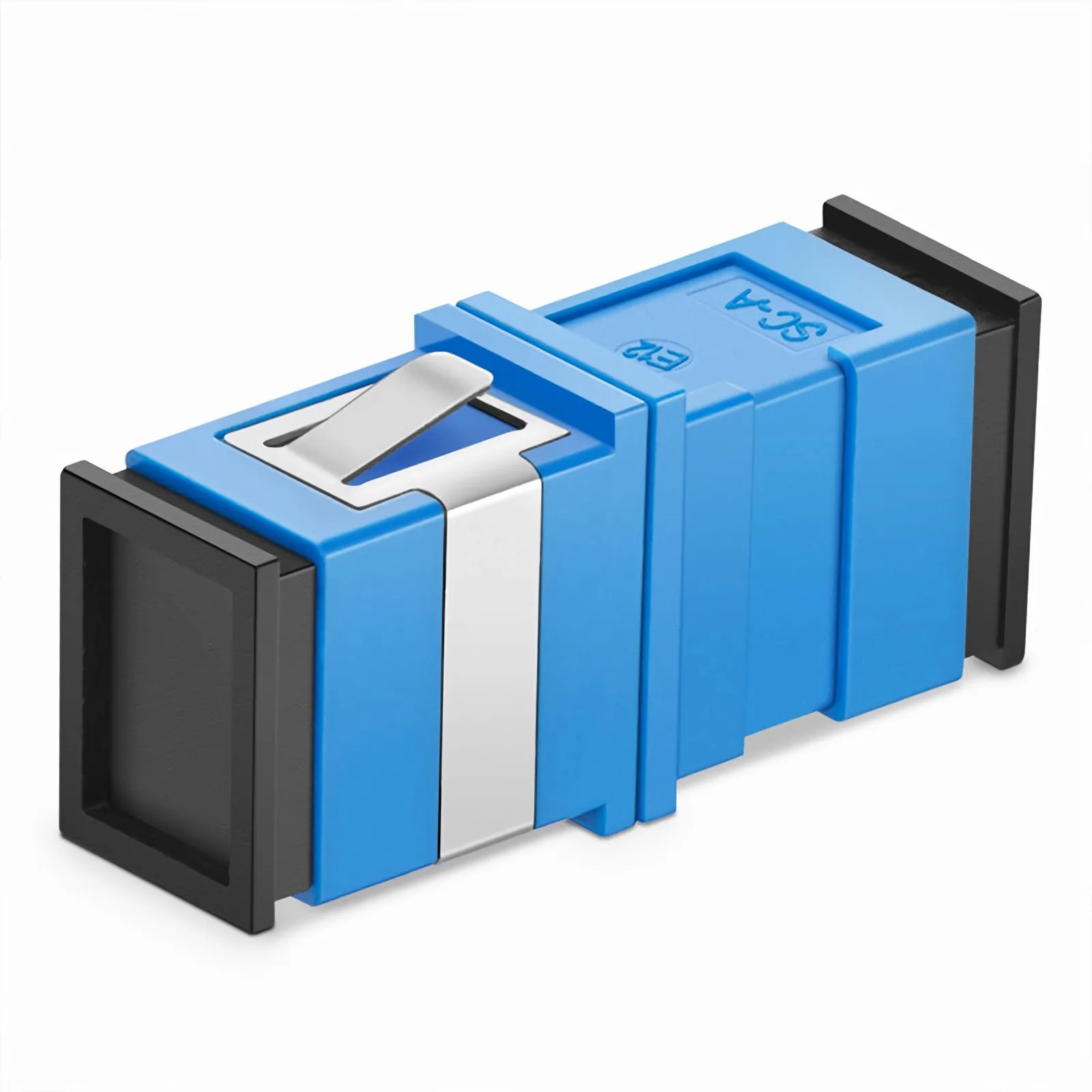

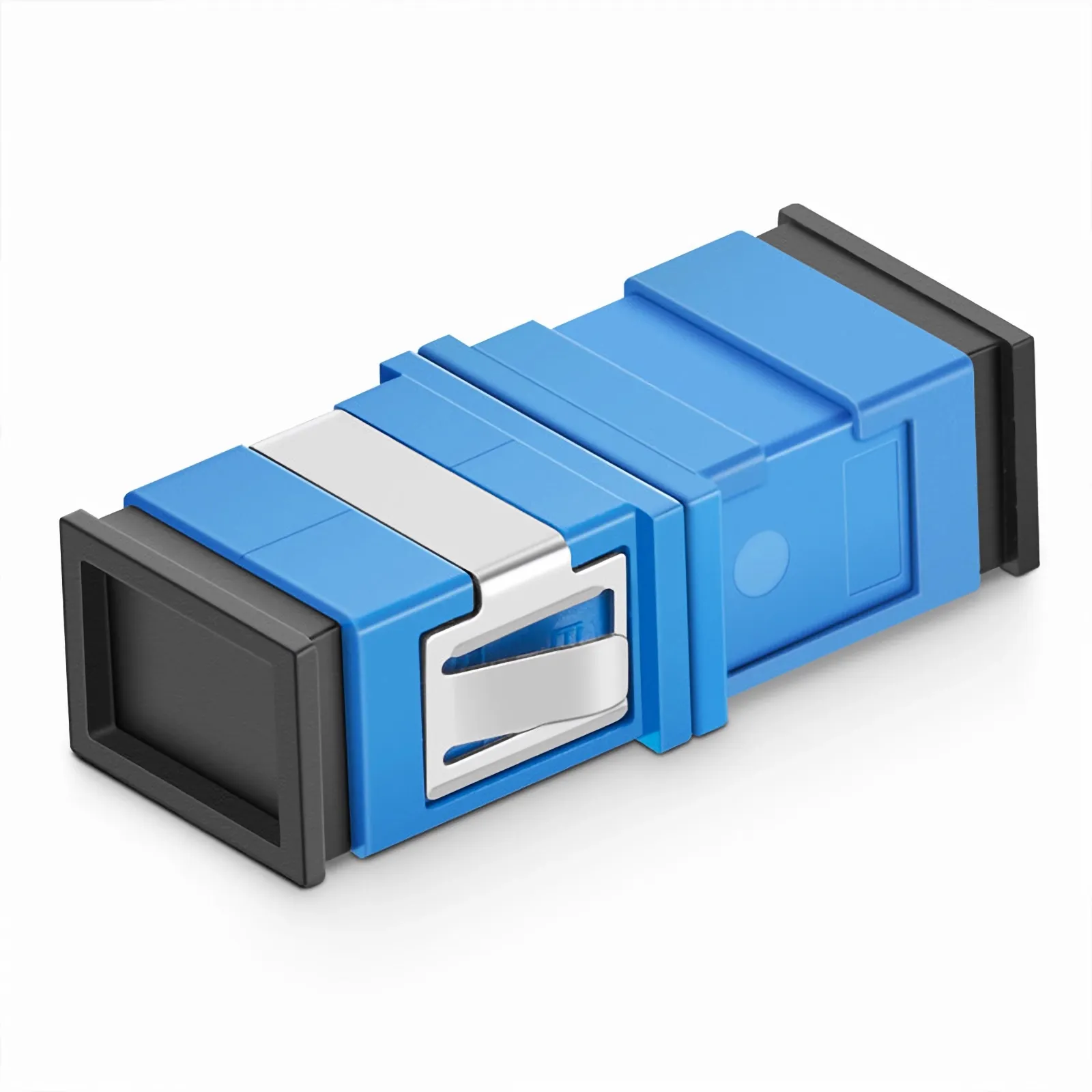

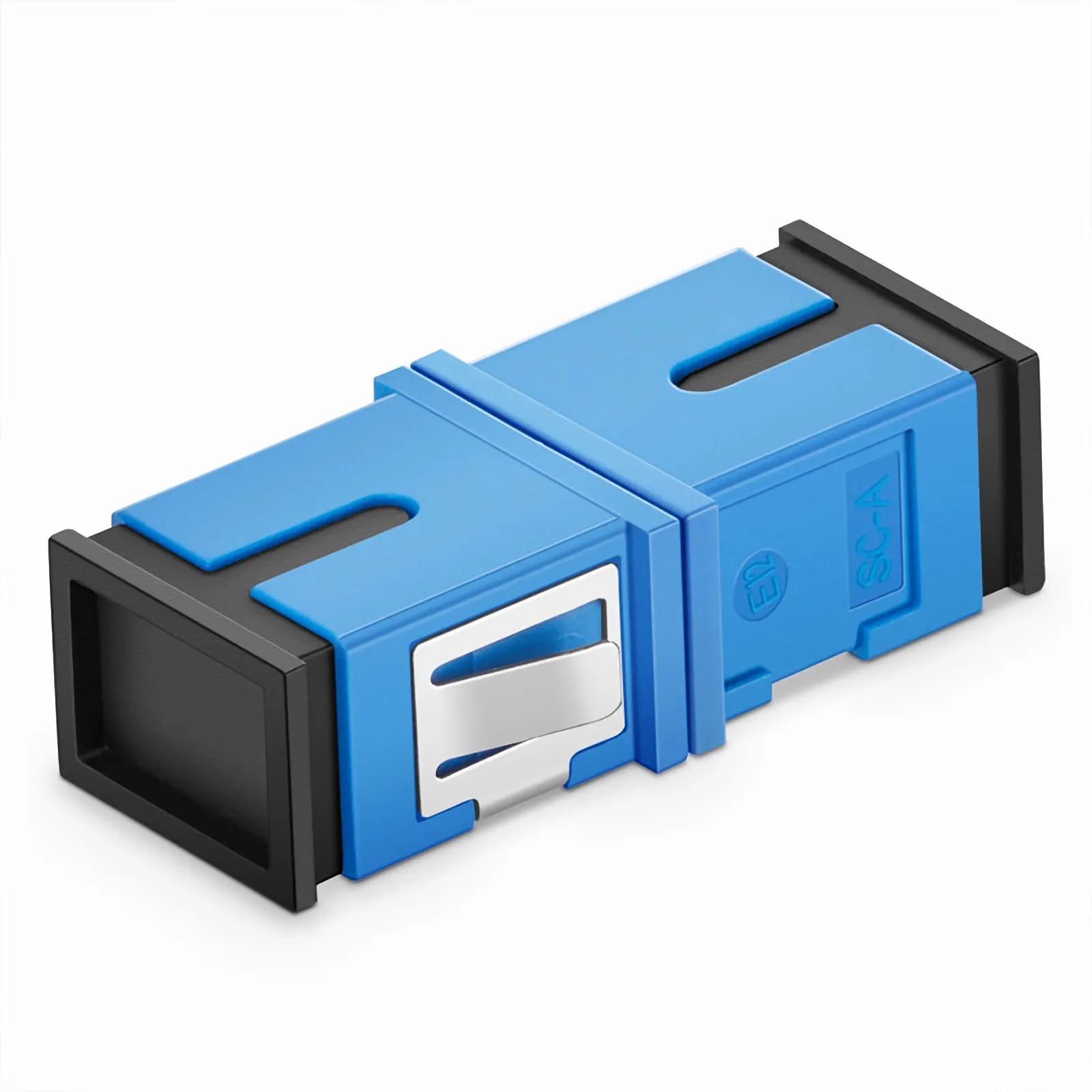

Adapter SC/UPC SM SX adapter
KSh5.00
- Type: SC/UPC to SC/UPC Singlemode Simplex Fiber coupler
- External Material : Plastic
- Fiber Optic Adapter Color: Blue
- Good compatibility and small error of concentricity, high precision machining dimensions,high reliability, stability,low insertion loss, high echo loss and good interchangeable performance
- Application:Telecommunication network, Metropolitan area network, Optical communication system,Optical fiber test instrument,Fiber optic CATV, Optical fiber sensor,Fiber optic broadband access network, FTTH optical fiber entry,Optical fiber distribution frame etc
Order Via WhatsApp
Adapter SC/UPC SM SX adapter
A fibre optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fibre optic cables or fibre optic connectors between two fibre optic lines. By linking two connectors precisely, fibre optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fibre optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fibre optic adapters.
Specifications
Connector Type
SC-SC
Body Style
Simplex
Polish Type
UPC
Fiber Mode
OS2 9/125μm
Insertion Loss
≤0.2
Durability
1000 times
Mounting Type
Reduced Flanged
Alignment Sleeve Material
Ceramic
Color
Blue
Flammability Rate
UL 94V-0
Package Quantity
10 Pcs
RoHS Compliancy Status
Compliant
Operating Temperature
-40 to 85℃(-40 to 185℉)
Storage Temperature
-10 to 60℃(14 to 140℉)
