SC UPC SM Pigtails

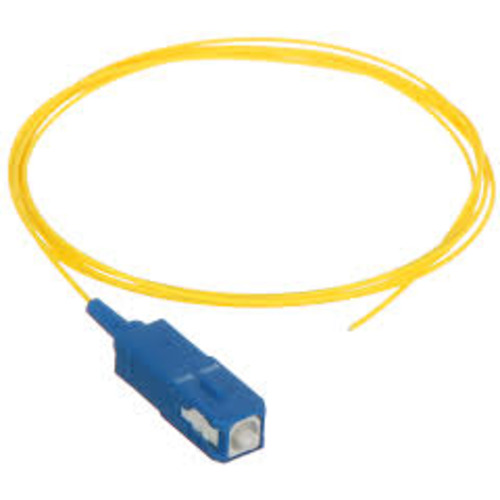

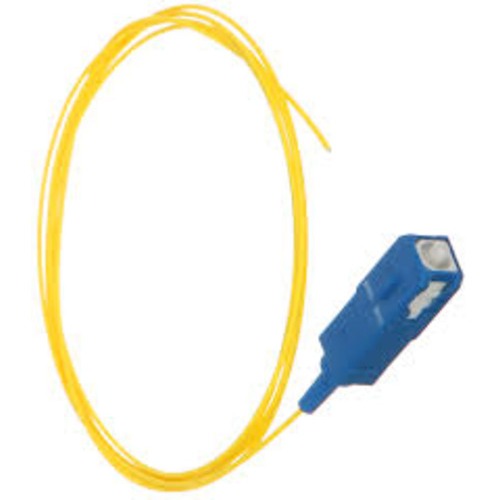

Streamline your high-speed network deployments with SC/UPC Single Mode (SM) Pigtails, the professional solution for reliable and repeatable fiber splicing. Driven by a powerful processor of signal integrity—a high-grade 2.5mm zirconia ceramic ferrule—these pigtails are engineered for the 2026 telecommunications landscape, ensuring an insertion loss of ≤0.3dB. The SC (Subscriber Connector) features a robust “push-pull” locking mechanism that provides a secure, vibration-resistant connection in both residential and industrial environments. Featuring 9/125µm OS2 single-mode fiber, these pigtails deliver the ultra-low attenuation required for long-haul 1310nm and 1550nm transmissions. Each pigtail consists of a factory-terminated SC connector on one end and a stripped, open-ended fiber on the other, optimized for immediate fusion or mechanical splicing.

The 1.5-meter LSZH (Low Smoke Zero Halogen) 900µm tight-buffered jacket provides superior protection during the splicing process while remaining flexible enough for intricate routing within splice trays and cabinets. The Ultra Physical Contact (UPC) polish ensures a high return loss (≥50dB), minimizing back-reflection and protecting your sensitive optical transceivers from damage. To facilitate rapid installation and error-free cable management, these pigtails are available in 12-color coded sets following international TIA/EIA-598 standards. Every SC pigtail undergoes rigorous 3D interferometer testing and end-face inspection to guarantee that every splice meets the highest industry standards for durability and signal quality.

SC/UPC Pigtail Performance Highlights:

• Industrial-Grade SC Connectivity: The 2.5mm zirconia ferrule ensures a stable, low-loss physical connection for 1G, 10G, and 100G Ethernet applications.

• G.652.D OS2 Fiber Core: Specifically optimized for high-bandwidth 1310nm to 1625nm transmission with industry-leading low attenuation and macro-bend resistance.

• Color-Coded for Efficiency: Available in standard 12-color sets (Blue, Orange, Green, Brown, etc.) for rapid fiber identification and organized splicing.

• Safety-First LSZH Buffer: Flame-retardant and low-smoke properties make these pigtails compliant for all indoor data center, enterprise, and FTTH environments.
